DMTP5100
Apply to
Marine : Fishing boat, Leisure boat, Cruise, Fast ferry
Marine : Driving for Waterjet, Side thruster
Industrial : Water Pump, Sand Pump, Oil Pump
Standard supply
– Live PTO
– Mechanical control valve
– Cable bracket/clamp parts.
– Oil cooler/cover
– Companion flange/Reamer bolts
– Bell housing(Selection)
– Dual stage coupling
Features
– Live PTO for extra hydraulic applications.
– Suitable reduction ratio for Waterjet and Side thruster
– Marine reduction gearbox with hydraulic clutch.
– Suitable for twin engines with the same reduction ratio as forward/reverse.
– Design and strict quality management according to ISO9001 standards.
– Use of seawater resistant castings.
– Quiet operation with precise gearing.
– Tapered roller bearing application considering maximum thrust.
– Compact design, minimal appearance in its class.
– Permanently available oil filter(metal) applied.
– GO HOME(emergency bolt application) function.
Options
– Electric control valve(12V, 24V optional)
– Mechanical trolling valve
– Mounting brackets(Flat type, Customized)
– Parts for Live PTO(Pump Pad, Coupling)
– Class

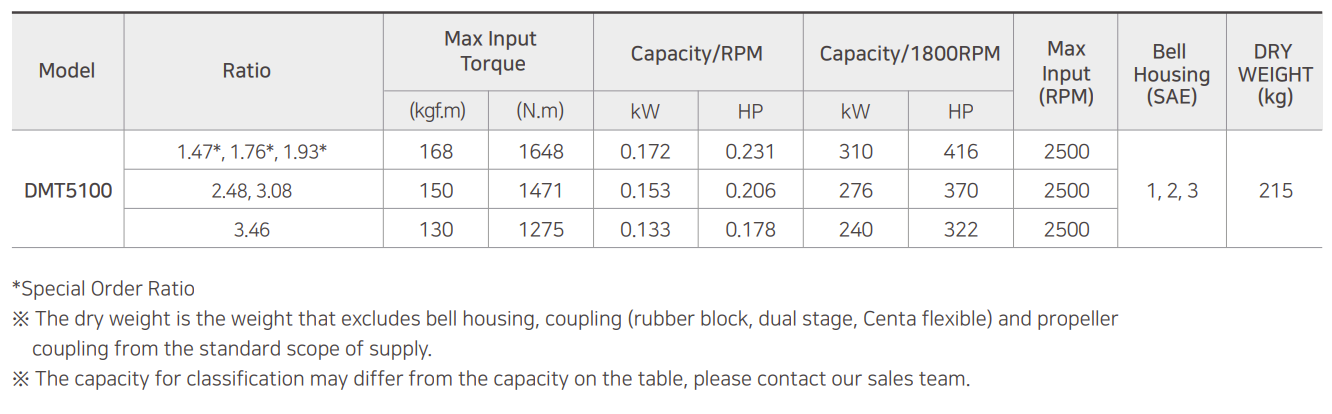

SPEC
Dimension
Input flange Dimension
Pump Mounting Kit
When attaching a hydraulic pump to the Live PTO, please order the pump mountingkit by referring to the figure and table below.
Download
Item | Download | ||
---|---|---|---|
Installation drawing(SAE#1 14″ DTC_Coupling) | 3D CAD | CAD | |
Installation drawing(SAE#2 11.5″ DTC_Coupling) | 3D CAD | CAD | |
Installation drawing(SAE#3 11.5″ DTC_Coupling) | 3D CAD | CAD | Mass Elastic System(For TVC) | CAD |
Part List | CAD | Manual(PDF) | 日語 | ENG | 한글 |
* RB_Coupling : Rubber block coupling
* DTC_Coupling : Dual stage coupling
