DMT600DL
![](http://diic.cafe24.com/eng/wp-content/uploads/sites/2/2020/07/MG_PIC_DMT600DL_myeongjun.png)
Apply to
Heavy duty Workboat
Fishing boat, Trawler, Tug boat, Push boat, Ro-Ro ferry, Tanker
Standard supply
– Mechanical control valve
– Cable bracket/clamp parts.
– Oil cooler/cover
– Companion flange/Reamer bolts
– Bell housing(Selection)
– CENTA Flexible coupling
Features
– Durable structure of driving gear bearing
– Thruster bearing for Output shaft
– Marine reduction gearbox with hydraulic clutch.
– Suitable for twin engines with the same reduction ratio as forward/reverse.
– Design and strict quality management according to ISO9001 standards.
– Use of seawater resistant castings.
– Quiet operation with precise gearing.
– Tapered roller bearing application considering maximum thrust.
– Compact design, minimal appearance in its class.
– Permanently available oil filter(metal) applied.
– GO HOME(emergency bolt application) function.
Options
– Electric control valve(12V, 24V optional)
– Mechanical trolling valve
– Mounting brackets(Flat Type, Customized)
– Class
SPEC
![](http://diic.cafe24.com/eng/wp-content/uploads/sites/2/2020/07/MG_SPEC_600DL.jpg)

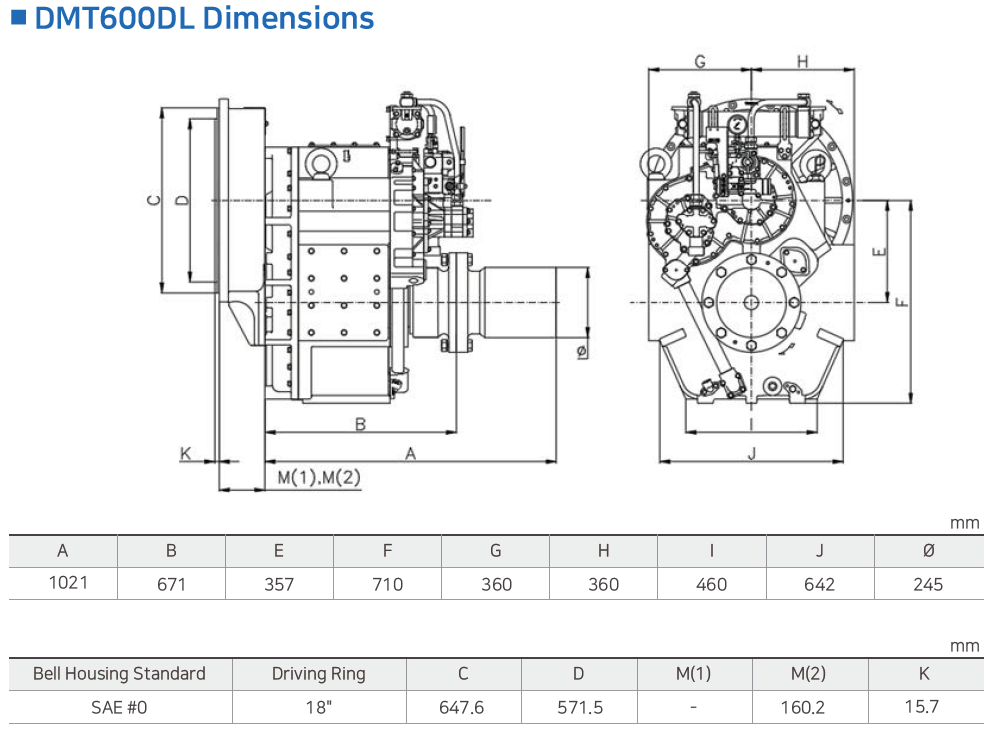

Dimension
![](http://diic.cafe24.com/eng/wp-content/uploads/sites/2/2020/07/MG_DIM_600DL.jpg)

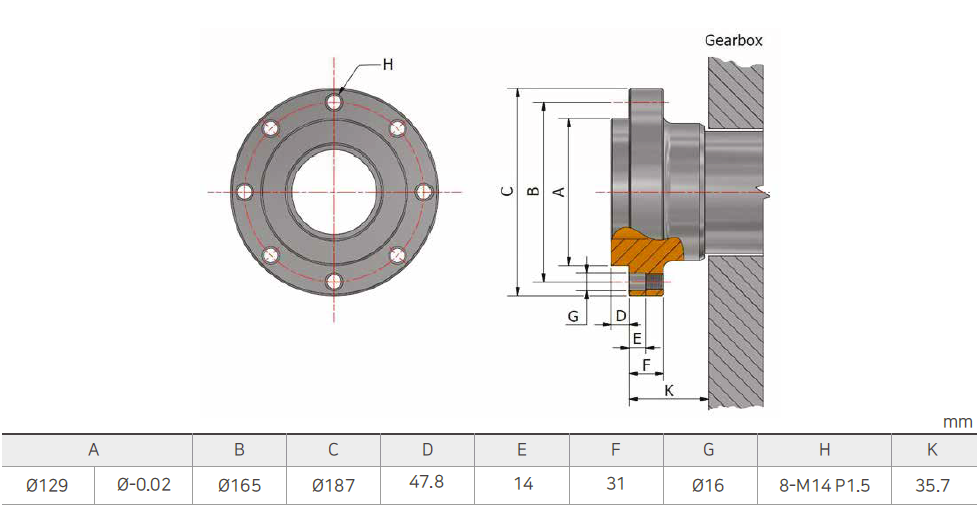

Input flange Dimension
![](http://diic.cafe24.com/eng/wp-content/uploads/sites/2/2020/07/MG_IPS_600DL.jpg)
